x86 compute platform supporting virtualization


Share on twitter
Share on linkedin
Share on whatsapp
Share on email

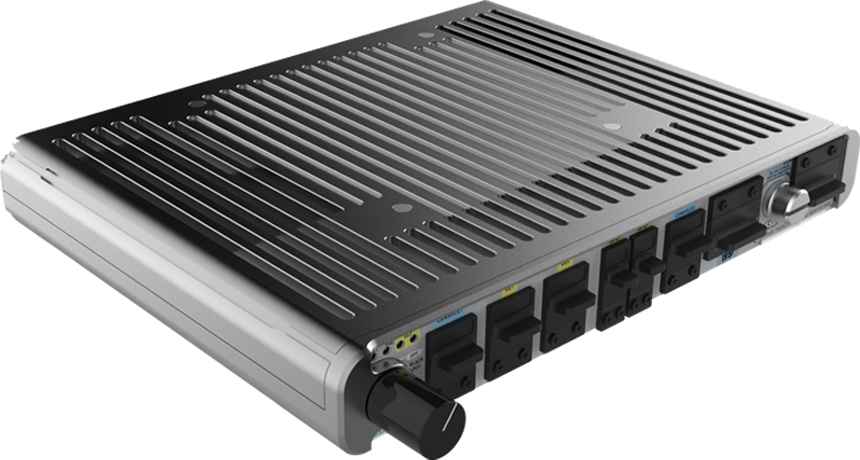

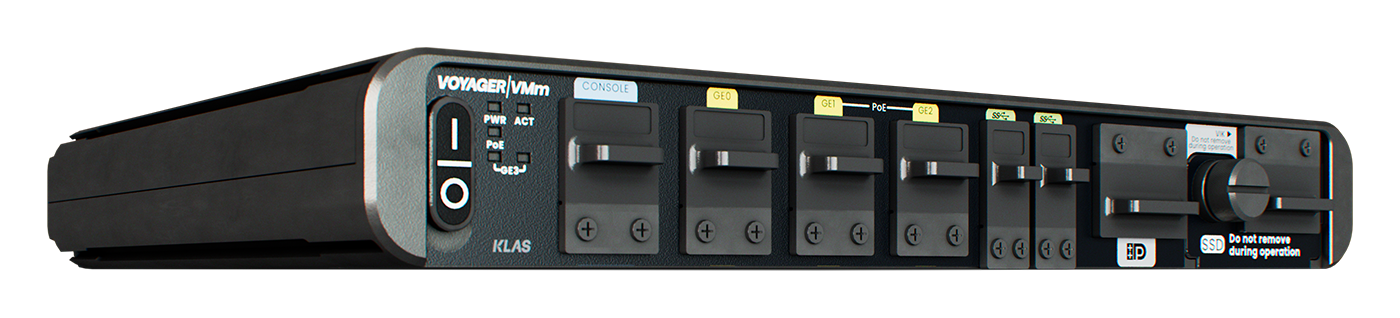

VoyagerVMm offers an Intel 5th Gen i5 compute platform in a fanless, half-size module format. With support for 32GB RAM and dual-core performance, VoyagerVMm supports VMware virtualization for Guest Operating support such as Riverbed WAN Acceleration, Cisco ASAv and Cisco CUCM. It can also be paired with VoyagerLMRm to provide a Twisted Pair WAVE implementation including four E&M ports, to integrate your radios with an IP network in a single Voyager module.

VoyagerVMm Brochure

The m-Series increases the flexibility and scalability of the Voyager system and users can better tailor its features to meet their requirements.

Key Features

  • Half the height of standard VoyagerVM at 7.4″ W x 5.7″ D x 1″ H
  • Low power consumption
  • Lightweight extruded aluminum construction
  • Data & power backplane to simplify cabling
  • Cisco-based technology
  • Intel Processor (i3 or i5 options)
  • Supports Virtualization
  • Platform for Riverbed WAN Acceleration, Twisted Pair WAVE, Cisco IPICS, Cisco 5921 Software Router



  • Intel Processor
  • Supports virtualization
  • Platform for Riverbed WAN Acceleration, Twisted Pair WAVE, Cisco IPICS,
    Cisco 5921 Software Router


  • 7.4” W x 5.7” L x 1.0” H (188 mm x 145.2 mm x 26mm)
  • 2.2 lb / 1.0 kg


  • 10-18 VDC input
  • 20 W power consumption


  • 2 x Console
  • 3 x Gigabit Ethernet front ports
  • 1 x Gigabit Ethernet on the rear
  • 2 x USB 3.0
  • 1 x DisplayPort++
  • 1 x VIK
  • 1 x SSD


  • Lightweight extruded aluminum
  • Sealed unit with dust caps for extra protection

Operating Temperature Range

  • -30oC to +50oC

CPU Options

  • 5th Gen Intel® Dual-Core™ i5-5350U (1.8GHz); 32 GB DDR3 RAM
  • 5th Gen Intel® Dual-Core™ i3-5010U (1.8GHz); 8 GB DDR3 RAM
  • Intel® vPro™ / IPMI; Intel Virtualization Technology; IPMI management

Storage Options

  • Samsung 850 EVO 250 GB mSATA SSD
  • Samsung 1 TB mSATA SSD option also available


  • MIL-STD-810G, IEC 60529, MIL-STD-461E, FCC Part 15B
